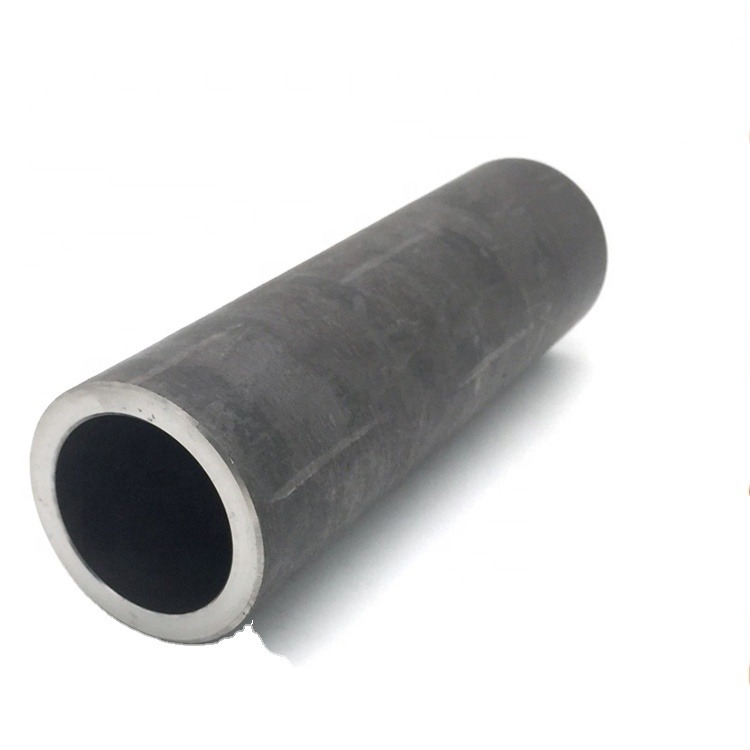

Seamless Tubes And Pipes, CK45 Hydraulic Pipe Carbon Steel

5 tons
MOQ
Seamless Tubes And Pipes, CK45 Hydraulic Pipe Carbon Steel
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Application: Hydraulic Pipe, OIL PIPE, Hydraulic pipe,construction pipe,machine pipe etc, Hydraulic pipe
Alloy Or Not: Non-Alloy
Section Shape: Round
Special Pipe: API Pipe, Thick Wall Pipe
Outer Diameter: 30 - 500 mm
Thickness: 3 - 150 mm
Standard: ASTM
Length: 12M, 6m, From 3m to 9m
Certificate: API, JIS, ISO9001
Grade: STEEL
Surface Treatment: Painted
Tolerance: ±1%, H8 ,H9, H10
Processing Service: Cutting
Oiled or Non-oiled: Slightly Oiled
Invoicing: by actual weight
Delivery Time: 15-21 days
Technique: Cold Drawn
Certificación: ce
Secondary Or Not: Non-secondary
Type: Honed steel tube
ID: From 30mm to 400mm
OD: From 30mm to 500mm
Brand: LY
Información básica
Certificación: API, JIS, ISO9001, ce
Pago y Envío Términos
Supply Ability: 500 Ton/Tons per Month
Descripción de producto

CK45 carbon seamless steel tube

Product Description

About Product:

One: Product Introduction

Honed pipe for construction

Manufacturer

Qingzhou Longyue Hydraulic Machinery Co.,Ltd

Standard

DIN2391 EN10305

Material

ST44 ST45 ST52 E355 STKM13C

Heat treatment

BK+S

Specification

Outer diameter(mm)

Inner diameter(mm)

50-300mm

40-250

I.D Tolerance

H8-H9

Length

3-9m

Straightness

1/1000

ID roughness

RA 0.4micron(max)

Technology

Honed & SRB(SKIVED AND ROLLER BURNISHED )

Scope

Hydraulic cylinder tube for swivel crane, injection machine and construction machine application

Two,Product Material and Technology

Chemical composition of Material:

Steel grade

Chemical composition,%

C

Si

Mn

P

S

Cr

20#

0.17-0.24

0.17-0.37

0.35-0.65

0.035

0.035

0.25

16Mn

≤0.2

≤0.5

1.00-1.60

0.03

0/03

0.25

ST52(E355)

≤0.22

≤0.55

≤1.6

0.025

0.025

0.25

SAE1026

0.22-0.28

0.15-0.35

0.6-0.9

0.04

0.05

/

Mechanical Property of Material:

Delivery
condition

cold finished(hard)(BK)

Cold drawn and stress-relieved(BK+S)

Steel grade

Rm MPa

Elongation
A5(%)

Rm MPa

ReH MPa

Elonggation
A5(%)

20#

≥550

≥8

≥520

≥375

≥15

16Mn

≥640

≥5

≥600

≥520

≥14

ST52

≥640

≥5

≥600

≥520

≥14

SAE1026

≥640

≥5

≥600

≥510

≥12

Three,Product Process:

Raw material

Cold drawn

Heat treatment

Honed & SRB

Packing

BK+S

Four,Product Specification:

Five,Product Pictures:

Packaging & Shipping

About Packaging &Shiping

Company Information

About Our Company:

Qingzhou Longyue Hydraulic Machinery Co.,Ltd is located in Qingzhou,Shandong, one of the ancient Kyushu and china engineering machinery production base.The 309 state road is in front of our company where east neighbor Weifang, west neighbor Zibo, Jiaoji railway in south,Jiqing high way in north.The geographical position is superior, economic potential is abundant, relationship is formidable, business is developing smoothly.

Our company has fine facilities and efficient people. Now, there are 3 senior engineers,27 high and middle class technicians.The company own the strong technical force and perfect examine methods,the product quality always comes out top in previous industry assessments.the products gained provincial and department excellent products title of honor.

Qingzhou Longyue Hydraulic Machinery Co.,Ltd is a professional manufacturer of making steel tube The main type: Honing tube,Piston rod, Precision tube Cold Drawn Seamless Steel Pipe and so on. According to customer's actual requirement, our company can develop various series of products.

We follow"the quality first,the guest is supreme" service objective, take the customer demand as the central research and development direction, will create the glorious future hand in hand by the high quality product and the reasonable price with you!

Our Services

About Services:

Samples Detail:

a.sample leadtime:1~7days by professional design team

b.sample fee:it is free or as the detail of sample

c.sample fee refund:you can deduct it after you place an order

d.express delivery charge for sample:it is paid by you

Payment Terms:TT,Western Union

Trade Terms:FOB,CIF,C&F

Delivery Time:25~30 days after receive the payment
